Position indicator switch for valves and actuators PCS

Position indicator switch for valves and actuators PCS

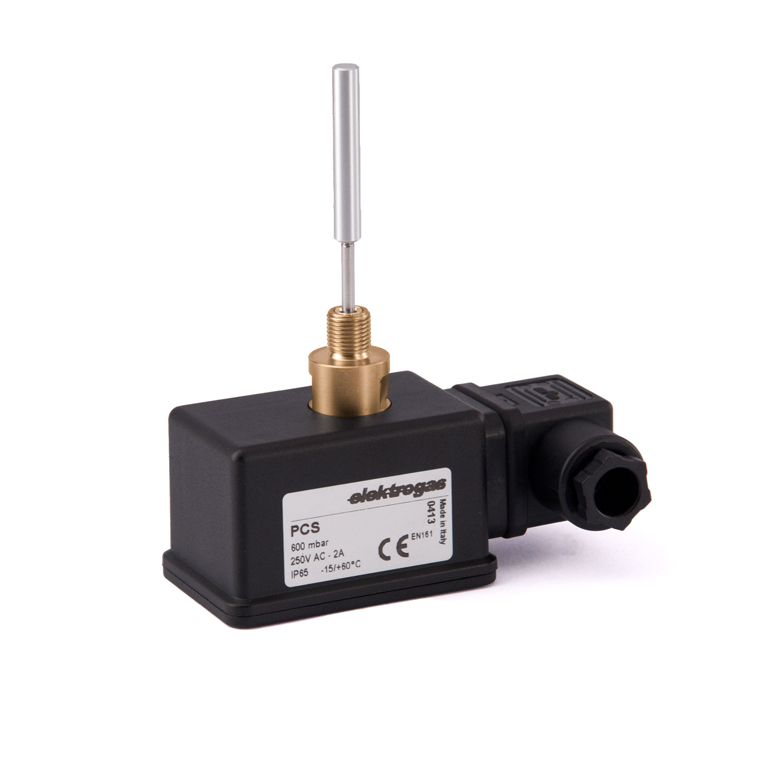

The Position indicator switch for valves and actuators PCS is a mechanically activated switch for monitoring the position of the valve plate.

This device can be fitted to the Elektrogas aluminium valves series VMR, VML, VMM, VMH, EVRM-NA, EVRM-6NA, EVRM-NC, EVRM-6NC to check the closed position of the plate.

It can be fitted to the N.O. vent valve VMRNA to check the open position of the plate.

It can be also fitted to solenoid actuators (SR – SL – ST) to check the open/closed position of the butterfly valve (VF – VFH).

Category:

Position indicator switch for valves and actuators PCS

PCS is available with working pressure 500mbar or 6bar.An adapting rod is necessary to fit the switch to an Elektrogas valve or actuator.

The switch is supplied with the rod already mounted, to make installation easier.The switch can be rotated on 360°on rod axis.

Electrical connection with ISO4400 plug.

It is suitable for air and non-aggressive gases (families 1-2-3 EN437). Special versions are available for use with aggressive gases.

The compact, robust and functional design permits a simple and quick installation, and it is essentially maintenance free.

All components are designed to withstand mechanical, thermal and chemical stresses present in a typical installation.

The device can be provided in Ex-proof execution, for use in Zones 2 and 22, according to 2014/34/UE Directive (ATEX).
